Etertec HT 100T and HT 100F
The HT 100 T and 100F series is widely applied to Printed Circuit manufacturing
Applications for print and etch, tent and etch or acid copper and etch resist plating process.
- Excellence resistance to acid etchant
- Excellence to known acid plating process
- High resolution and adhesion
- Easy to strip with small flake size
- Wide operating latitude
- Available film thickness of 30 microns, 38 microns and 50 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]
Etertec E 9300 and 9400
The E 9300 and 9400 series is a high energy film with very high resolution and is widely applied to Printed Circuit manufacturing applications for print and etch, tent and etch and plating
Process.
- Excellence resistance to acid etchant
- Excellence to known acid plating process
- Very high resolution and adhesion
- Wide operating latitude
- Available film thickness of 30 microns ,38 microns and 50 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row full_width=”stretch_row” equal_height=”yes” content_placement=”top”][vc_column][vc_text_separator title=”R2R Flex ” add_icon=”true”][vc_row_inner][vc_column_inner width=”1/2″][vc_column_text]
Etertec HP 3800
The HP 3800 series is widely applied to R2R Flexible Circuit Manufacturing application
For print and etch, tent and etch and plating process.
- Excellence resistance to acid etchant
- Excellence to known acid plating process
- Very fine resolution and adhesion
- Wide operating latitude
- Available film thickness of 15microns, 20 microns, 25 microns, 30 microns and 38 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]
Alpho 202J
The Alpho 202J series is widely applied to R2R Flexible Circuit Manufacturing application
For print and etch, tent and etch and plating process.
- Excellence resistance to acid etchant
- Excellence to known acid plating process
- Very fine resolution and adhesion
- Wide operating latitude
- Available film thickness of 25 microns and 30 microns and 38 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row full_width=”stretch_row” equal_height=”yes” content_placement=”top” css=”.vc_custom_1510908947183{background-color: #f2f2f2 !important;}”][vc_column][vc_text_separator title=”Electrolytic nickel and gold and Electroless Nickel and Immersion Gold” add_icon=”true”][vc_row_inner][vc_column_inner width=”1/2″][vc_column_text]
Etertec HQ 6300
The HQ 6300 series is widely applied to electrolytic nickel and gold plating process.
- Excellence resistance to acidic nickel plating solution
- Good adhesion up to temperature of 60 degree C
- Wide operating latitude
- Available film thickness of 50 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]
Etertec HQ 6200 and HQ 6500
The HQ 6200 and 6500 series is widely applied to electroless nickel and immersion gold plating process.
- Excellence resistance to known electroless nickel plating solution
- Good adhesion up to temperature of 85 degree C
- Wide operating latitude
- Available film thickness of 50 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row full_width=”stretch_row” equal_height=”yes” content_placement=”top”][vc_column][vc_text_separator title=”High Density Interconnect” add_icon=”true”][vc_row_inner][vc_column_inner width=”1/2″][vc_column_text]
Etertec HP 3600
The HP 3600 series is widely applied to substrate manufacturing application for thick copper and Solder plating process
- Excellence resistance to known acid copper and tin plating solution
- Good aspect resolution on via up to 50 microns ( depends on machine, 0.8 to 1.0)
- Wide operating latitude
- Available film thickness of 50 microns, 65 microns, 75 microns and 100 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]
Etertec BR 40000
The BR 40000 series is widely applied to wafer bumping application for thick copper and Solder plating process
- Excellence resistance to known acid copper and tin plating solution
- Good aspect resolution on via up to 50 microns ( depends on machine, 0.8 to 1.0)
- Wide operating latitude
- Available film thickness of 50 microns, 75 microns, 115 microns and 300 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row full_width=”stretch_row” equal_height=”yes” content_placement=”top” css=”.vc_custom_1510908947183{background-color: #f2f2f2 !important;}”][vc_column][vc_text_separator title=”Laser Direct Imaging Film” add_icon=”true”][vc_row_inner][vc_column_inner width=”1/2″][vc_column_text]
Etertec UDF 7100
The UDF 7100 series is designed for UV laser direct imaging application
- Excellence resistance to acid etchant
- For i-line wavelength (365nm)
- Excellence to known acid plating process
- Excellent fine resolution and adhesion
- Wide operating latitude
- Available film thickness of 20 microns and 25 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]
Etertec UDF 7200M
The UDF 7200M series is designed for UV laser direct imaging application
- Excellence resistance to acid etchant
- For i-line wavelength (365nm)
- Excellence to known acid plating process
- Excellent fine resolution and adhesion
- Wide operating latitude
- Available film thickness of 25 microns and 50 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row full_width=”stretch_row” equal_height=”yes” content_placement=”top”][vc_column][vc_text_separator title=”Dry Film Soldermask” add_icon=”true”][vc_row_inner][vc_column_inner][vc_column_text]
Dynamask DM 8500 and 8200
The Dynamask DM 8500 and 8200 series is widely applied to Printed Circuit manufacturing Application. The DM 8500 series is for rigid PCB and DM 8200 series is for Flex PCB.
- Excellence chemical resistance
- Excellence adhesion and resolution
- Excellent temperature resistance during the assembly process
- Wide operating latitude
- Available film thickness of 15microns, 25 microns, 38microns and 50 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row full_width=”stretch_row” equal_height=”yes” content_placement=”top” css=”.vc_custom_1510908947183{background-color: #f2f2f2 !important;}”][vc_column][vc_text_separator title=”Photosensitive Polyimide Film” add_icon=”true”][vc_row_inner][vc_column_inner][vc_column_text]
Etertec PIC 3300 and EPD 3500
The PIC 3300 and EPD 3500 is a negative tone, fully polyimide structure and aqueous Developable film.
- Excellence chemical resistance
- Excellence adhesion and resolution
- High Tg and low CTE
- Wide operating latitude
- Available film thickness of 25 microns and 30microns
Please contact us for detail[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row full_width=”stretch_row” equal_height=”yes” content_placement=”top”][vc_column][vc_text_separator title=”Touch Panel Film” add_icon=”true”][vc_row_inner][vc_column_inner][vc_column_text]
Etertec TPR 2600
The TPR 2600 series is widely applied to touch panel manufacturing application
- Excellence to ITO and metal etching resistance
- Excellence adhesion and resolution
- Wide operating latitude
- Available film thickness of 15 microns and 20 microns
Please contact us for detail[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row full_width=”stretch_row” equal_height=”yes” content_placement=”top”][vc_column][vc_text_separator title=”Eternal DF Technology” add_icon=”true”][vc_row_inner][vc_column_inner width=”1/2″][vc_column_text]
LDI Film (UD900)
- Function: Print&Etch & Plating
- DF Thickness: 30,40,50,62 um
- LDI ( Wave Length: 355 nm ) — Fast Photo speed ( 10~15 mj/cm2 )
UD-900 SEM for L/S = 40/40 um , 50% Break Point
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]Next Gen. DF for SAP
[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner][vc_column_inner width=”1/2″][vc_column_text]
Thick Film
- ETERTEC® BR 40000 Thick film
- 60um/75um/120um
- Excellent resolution : 30 um /75um thickness
- Excellent resistance to Ni/Au and Alkaline etching.
DF Photo Resist

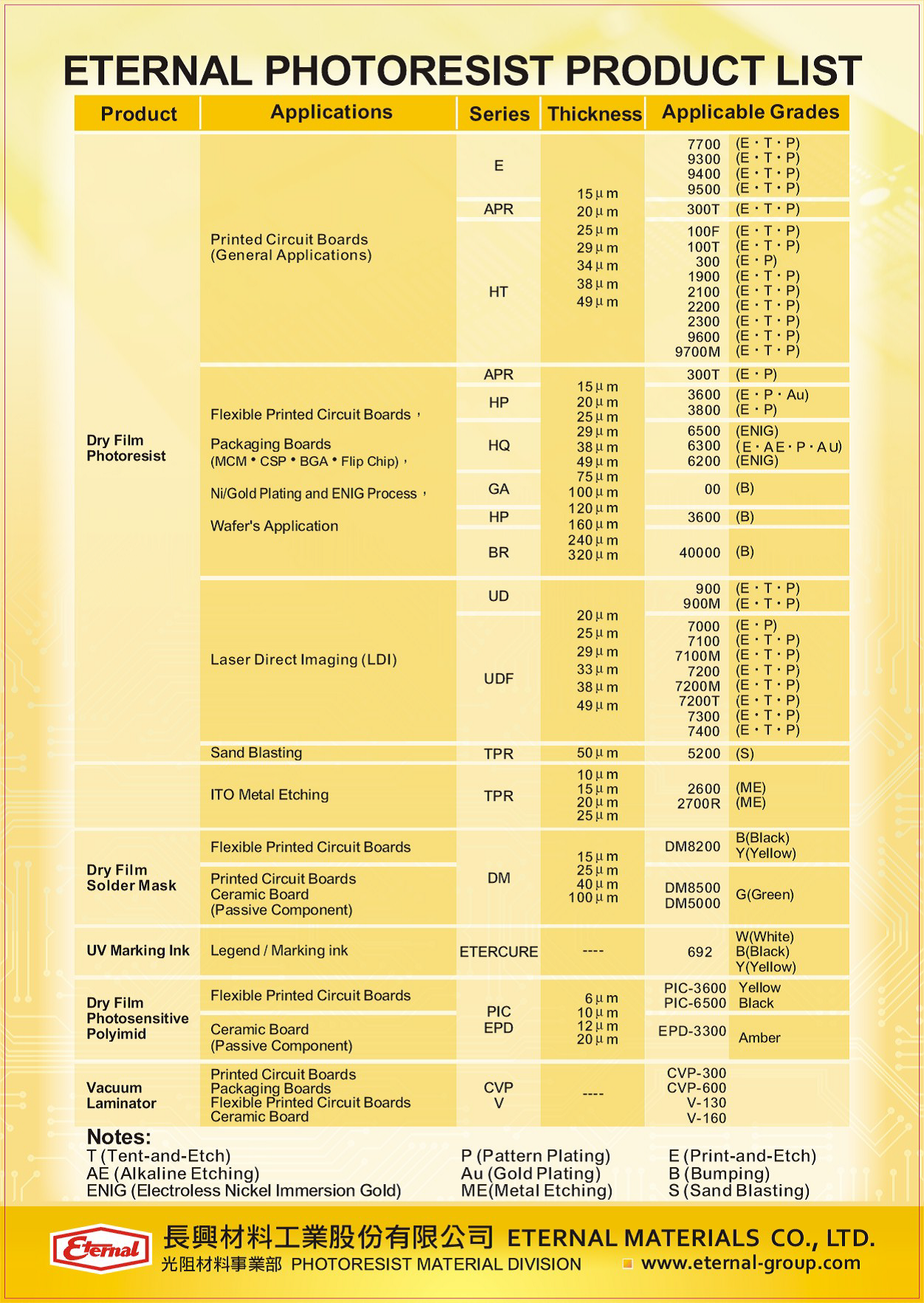

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row full_width=”stretch_row” equal_height=”yes” content_placement=”top”][vc_column][vc_text_separator title=”Eternal Photo Resist Catalog” add_icon=”true”][vc_row_inner][vc_column_inner][vc_single_image image=”272″ img_size=”full” alignment=”center”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row]
